Water Filter Nozzle, FEL (slotted drainage caps), 3rd version, are designed for filtrate (solution) separation from the filtering medium and further filtrate discharge.
Equipment parameters:
Price - on request
Warranty - 24 months
Delivery - Worldwide
Description

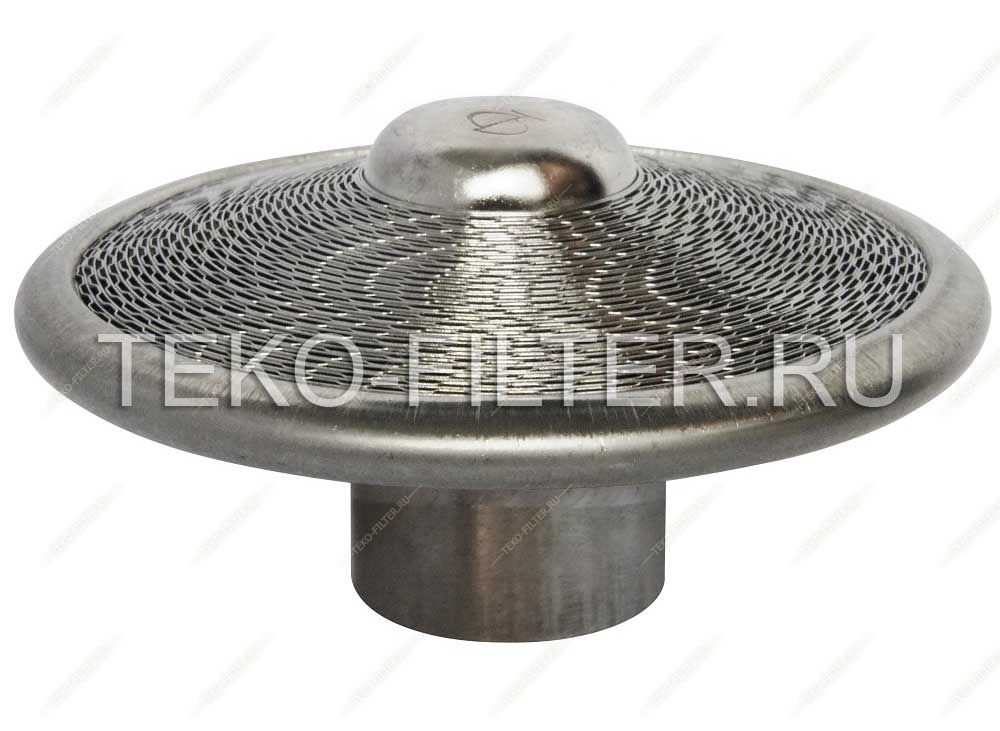

Water Filter Nozzle, FEL (slotted drainage caps), 3rd version
Operation principle: the filtrate (solution) moves through the filtering medium, is separated by FEL unit and removed through a connected fitting for further treatment.
Water Filter Nozzle, FEL (slotted caps), 3rd version, are manufactured according to Specifications TU 3113-002-33513134-2010 "Spirally-wound belt filtering element of FEL type" and registered in the State Register on February 18th, 2011.
Water Filter Nozzle, FEL (slotted caps), 3rd version, is combination of filtering units of 1st and 2nd version. This FEL element is designed as a filtering element with extended filtering surface to enlarge the filtering area while FEL's compact sizes remaining unchanged.

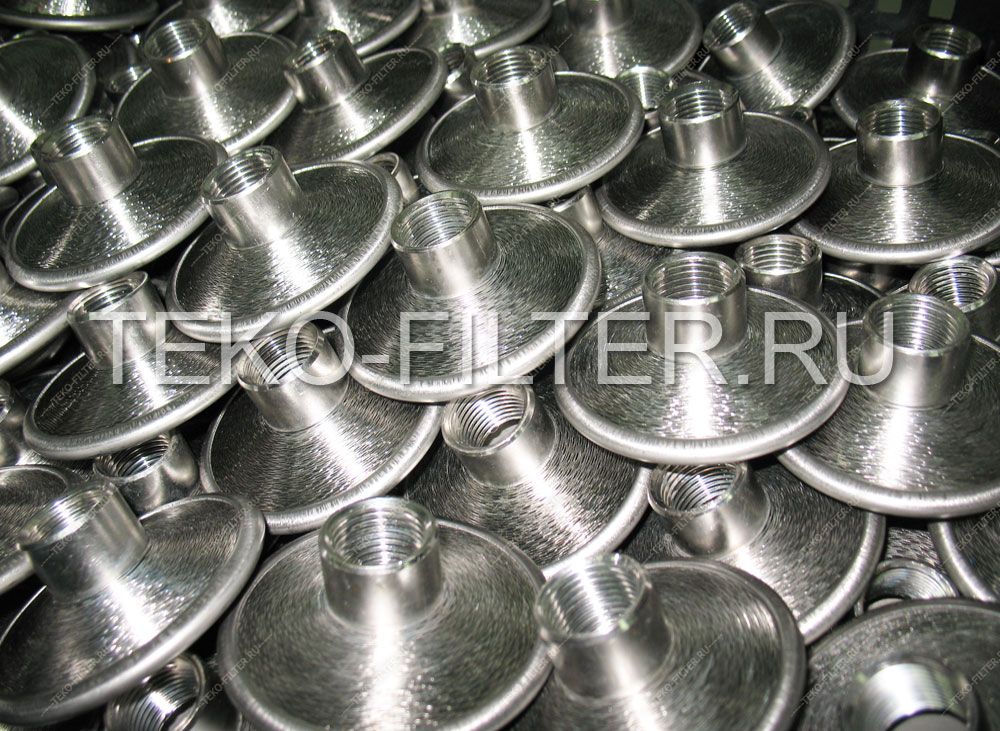

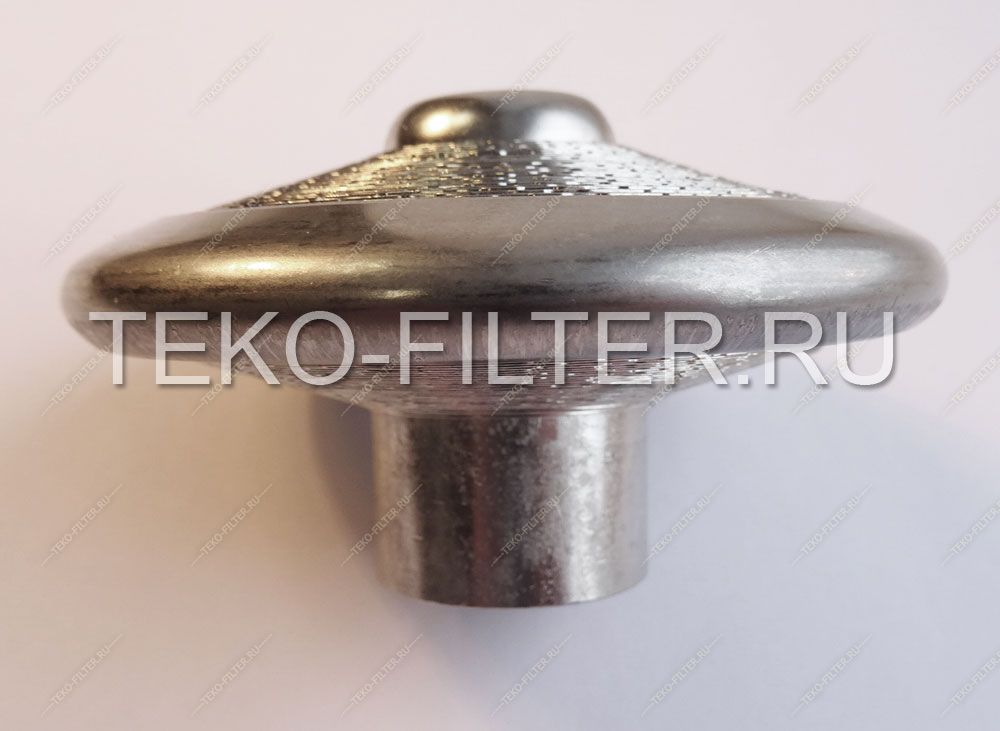

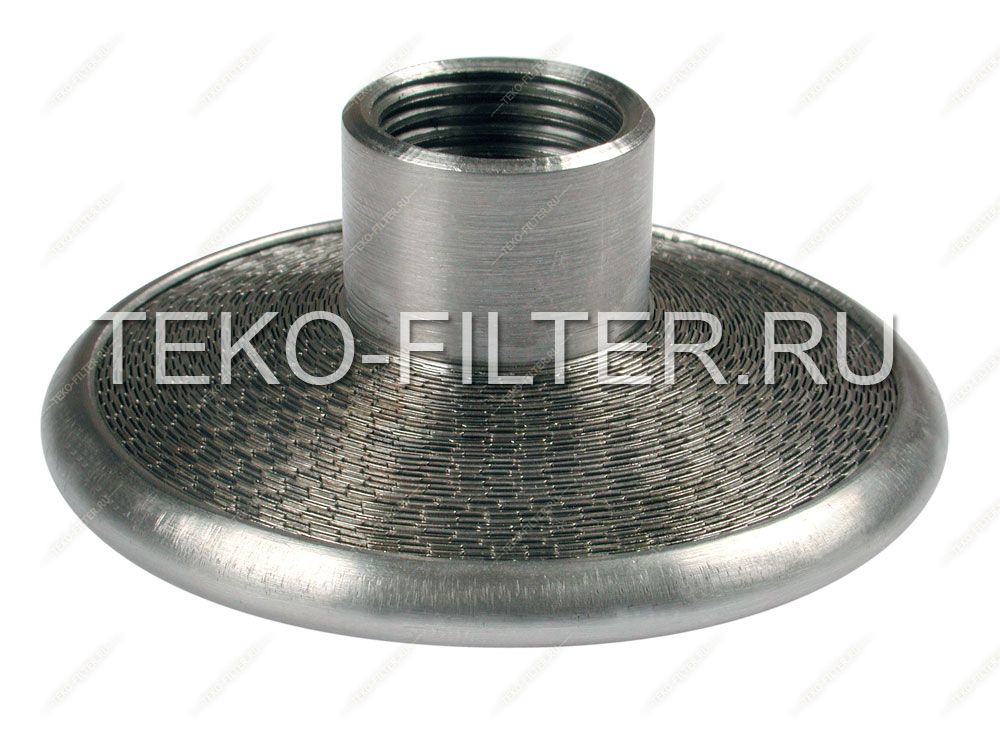

Water Filter Nozzle, 3rd version, has a housing with the filtering surface facing upwards and downwards and a connection fitting. The connection fitting has a threaded end to screw on the filtering elements. Unthreaded filtering elements are welded to the collection and distribution assembly.
Water Filter Nozzle, 3rd version, is made of 12Х18N10T stainless steel or steels of equivalent grade. Due to a corrosion-resistant material the filtering elements have increased resistance to aggressive media.
Water Filter Nozzle, 3rd version, is intended for use in specific water-treatment applications when large capacity drainage distribution systems are required.
Water Filter Nozzle are mounted in the filters’ collection and distribution assemblies of various purpose and design.
Product line and specifications of Water Filter Nozzle (FEL), 3rd version
Designation | Slot width, mm |
Filtration area (open area) |
Dimensions, mm | |
diameter | height | |||
FEL-0.1-23-3-N- К3/4-V | 0,1±0,05 | 23,00 cm2 | 100 | 63 |
FEL-0.2-17-3-N-G1/2-V | 0,2±0,05 | 17,00 cm2 | 74 | 45 |
FEL-0.2-17-3-N-G3/4-V | 0,2±0,05 | 17,00 cm2 | 74 | 45 |
FEL-0.2-35-3-N-K3/4-V | 0,2±0,05 | 35,00 cm2 | 100 | 63 |
FEL-0.4-24-3-N-K3/4-V | 0,4±0,05 | 24,00 cm2 | 74 | 45 |
FEL-0.4-53-3-N-K3/4-V | 0,4±0,05 | 53,00 cm2 | 100 | 63 |
You may find other types of FEL (slotted drainage caps) in our catalogue.
