Bottom collection and distribution assembly of duplicating type

Bottom collection and distribution assembly of duplicating type

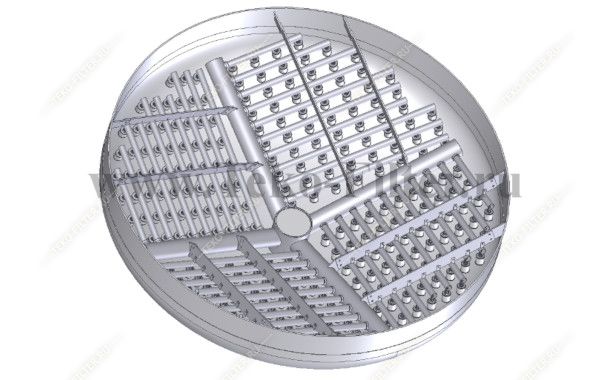

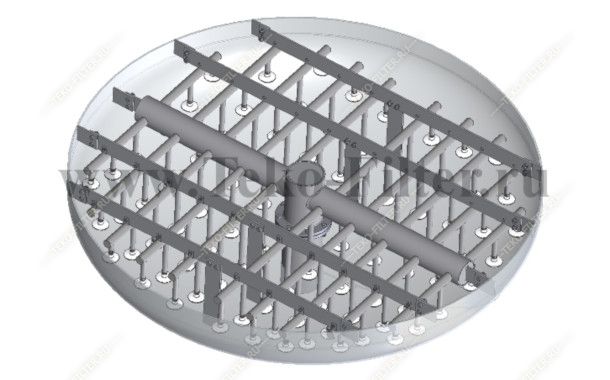

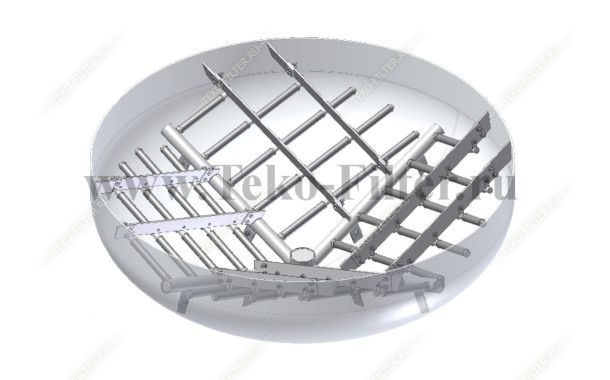

One more modification of the bottom collection and distribution assembly has so called arch type structure. The assembly includes a vertical inlet pipe, arched manifold that duplicates the surface of filter's elliptic bottom and radial pipes connected to it. The radial pipes are bent in several points and duplicate the filter's elliptic bottom as well. The radial pipes are equipped with FEL slotted caps or "TEKO-SLOT" wire-wound elements.
